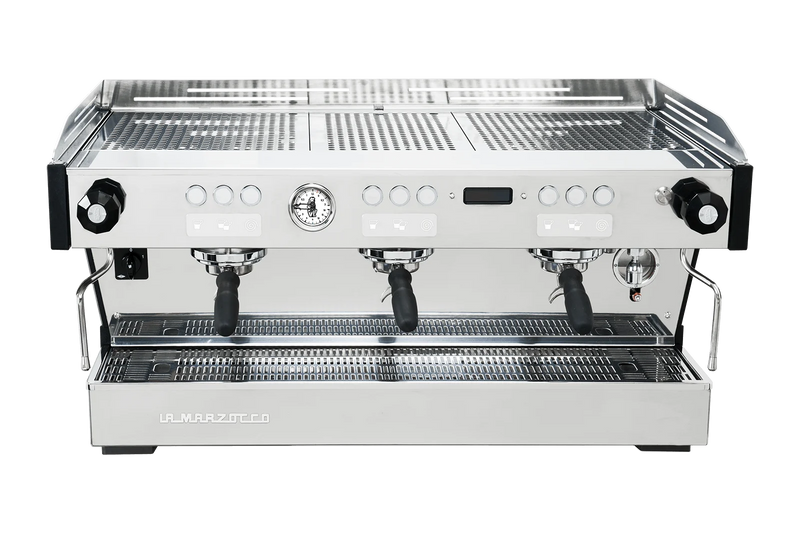

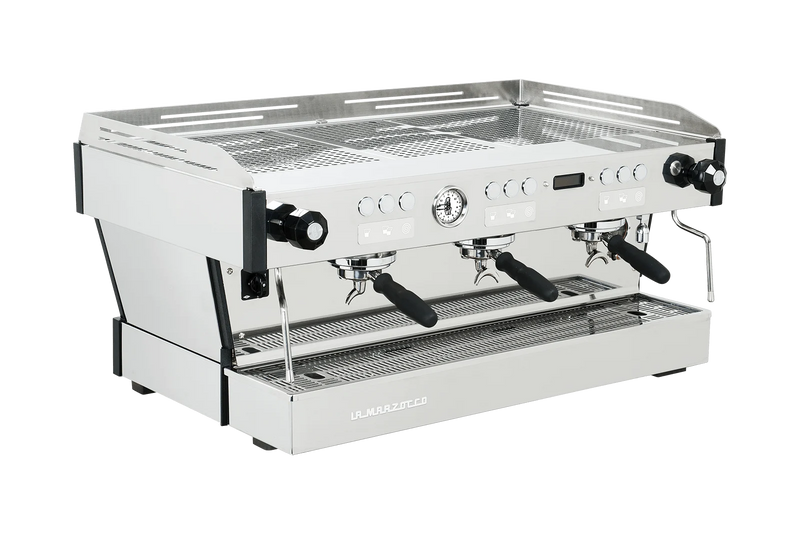

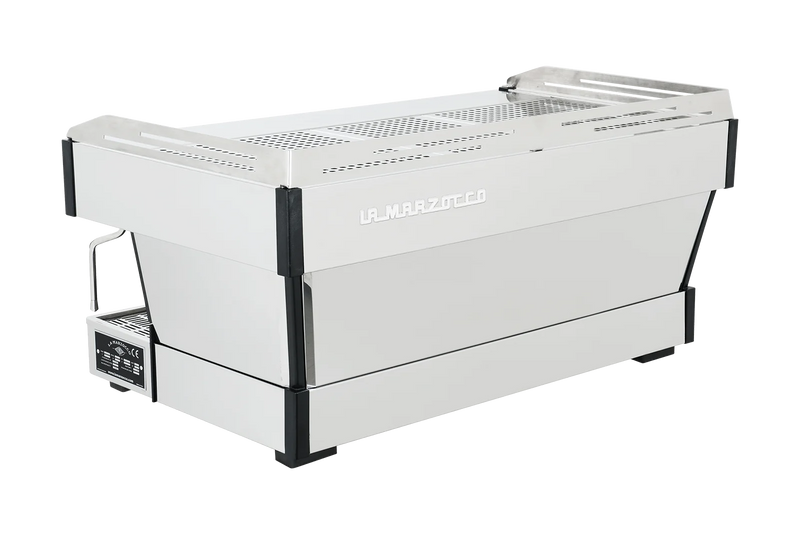

La Marzocco Linea PB X 3 Group Commercial Espresso Machine

Advanced professional 3-group commercial espresso machine with independent saturated boilers, dual PID temperature control, Pro Touch steam wands, and AV or ABR configuration options.

The La Marzocco Linea PB X 3 Group is an advanced professional commercial espresso machine designed for busy cafés, specialty coffee shops, restaurants, hotels, roasteries, and other high-volume coffee programs. Building on the trusted Linea PB platform, the Linea PB X incorporates advanced La Marzocco technologies while maintaining the practical lower profile, increased work area, and recognizable Italian design of the Linea PB.

The 3-group configuration features independent saturated boilers for each group head, allowing baristas to optimize brewing temperature for individual coffees while maintaining excellent thermal stability. A dynamic preheating system helps provide steady brew water and steam even during demanding peak service periods, while Dual PID control allows electronic adjustment of both coffee and steam boiler temperatures.

The 3-group model features three 1.3-liter coffee boilers and an 11-liter steam boiler. Pro Touch steam wands provide high-performance steaming while remaining cool to the touch, and the Hot Water Economizer allows the operator to fine-tune tap water temperature for tea and other hot beverages.

The Linea PB X 3 Group is available in AV (auto-volumetric) and ABR (auto brew ratio with scales) configurations. The AV configuration provides automated volumetric dosing for consistent espresso preparation, while the ABR configuration adds precision scales integrated into the drip tray for enhanced consistency and extraction control by weight.

Key Features

• Professional 3-group commercial espresso machine
• Available in AV and ABR configurations
• Independent saturated boilers for each group head
• Separate boilers optimize espresso brewing and steam production
• Dynamic preheating system supports temperature stability during peak demand
• Dual PID control for coffee and steam boiler temperatures
• Three 1.3 L coffee boilers
• 11 L steam boiler capacity
• Pro Touch steam wands remain cool to the touch
• Integrated precision scales on ABR configuration
• Piero Group Caps improve temperature stability
• Digital display with intuitive programming
• Hot Water Economizer allows adjustment of tap water temperature
• Barista lights illuminate the extraction and cup area
• Eco Mode with programmable standby operation
• Insulated boilers help reduce energy consumption
• USB connectivity for firmware updates
• La Marzocco Pro App compatible
• ½-turn steam valve requires less movement during milk steaming
• Water sensor measures incoming water conductivity and hardness
• Special-order cup warmer, high legs, and personalized colors available

Available Configurations

Specifications

Ideal Use Case

Ideal for high-volume cafés, specialty coffee shops, restaurants, hotels, bakeries, roasteries, and other demanding commercial coffee programs that require increased espresso production capacity, precise temperature control, and powerful steam performance. The 3-group configuration provides additional brewing positions and workspace for multiple baristas during busy service periods.

Design & Build

The Linea PB X builds upon the proven Linea PB platform with updated technical and stylistic features. It incorporates technologies including a preheating system, independent boilers, an accessible hot water mixing valve, and Pro Touch steam wands. Refreshed aesthetics include barista lights as standard along with white details on the logos, manometer, display lettering, and keypads.

The 3-group model measures 38 inches wide, 23 inches deep, and 21 inches high, with a weight of approximately 170 lbs. It features three independent 1.3-liter coffee boilers and an 11-liter steam boiler. The brochure lists a minimum wattage of 5830W and a maximum wattage of 7790W for the 3-group configuration.

Independent saturated boilers provide a separate saturated boiler for each group head, allowing the barista to optimize temperature for individual coffees while maintaining thermal stability. Dual PID control provides electronic control over coffee and steam boiler temperatures, while insulated boilers help reduce energy consumption and contribute to temperature stability.

Pro Touch steam wands provide high-performance steaming while remaining cool to the touch. The Hot Water Economizer allows the operator to fine-tune tap water temperature for tea, while the ½-turn steam valve fully opens with half a turn to reduce the amount of movement required from the barista during milk steaming.

AV vs. ABR Configuration

AV – Auto-Volumetric: The AV configuration is designed for consistent volumetric espresso preparation. The barista initiates the extraction and the machine automatically stops the shot according to the programmed volume, helping improve consistency and workflow during busy service periods.

ABR – Auto Brew Ratio with Scales: The ABR configuration adds precision scales integrated directly into the drip tray. The integrated scales provide an improved level of consistency and allow beverage weight to be incorporated into espresso preparation. The integrated scales are exclusive to the ABR configuration.

Advanced Brewing Technology

The Linea PB X incorporates a dynamic preheating system designed to provide exceptional temperature stability and steady brew water and steam even during peak service periods. Combined with independent saturated coffee boilers, this system allows individual group temperatures to be optimized for different coffees while supporting consistent performance throughout demanding commercial service.

Special Order Options

• Cup Warmer – Helps maintain espresso and cappuccino cups evenly heated at an appropriate temperature
• Personalized Colors – Custom colors available based on the RAL color system

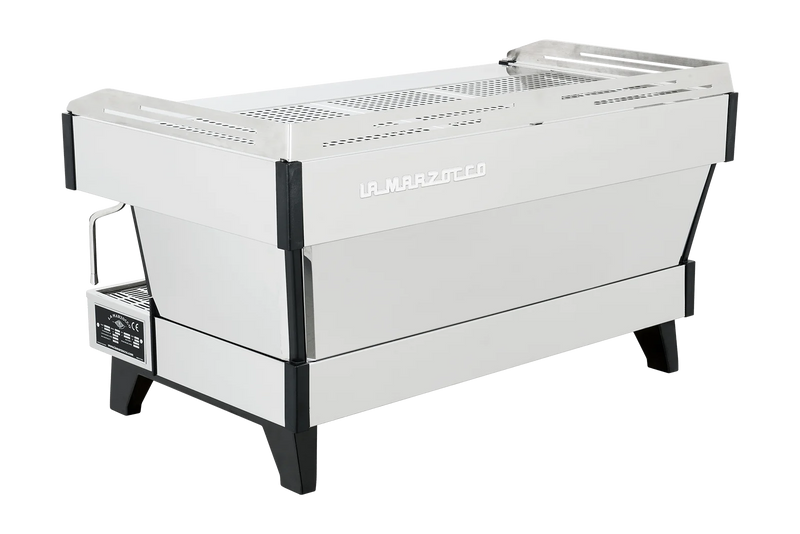

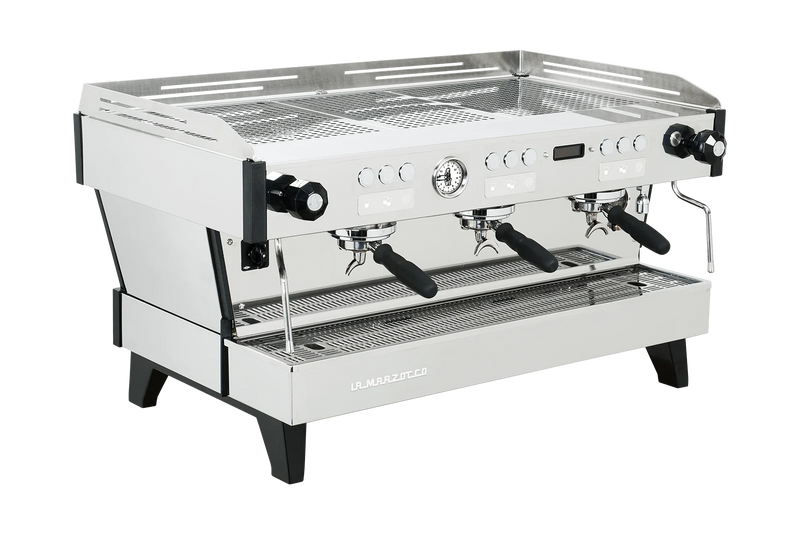

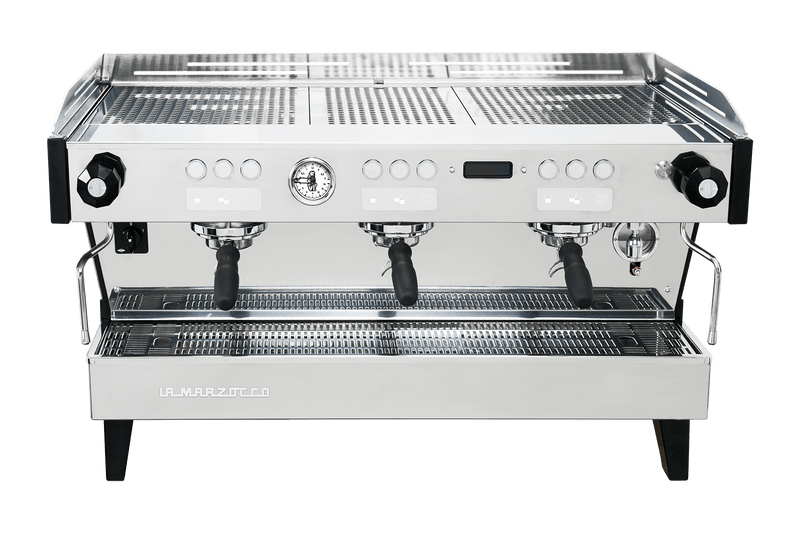

• High Legs – Provides easier access beneath the machine

Why Buy From Omni

• Canadian-based supplier
• Fast shipping across Canada
• Commercial-grade espresso equipment
• Responsive customer support
• Competitive pricing

Frequently Asked Questions

How many groups does this Linea PB X have?
This listing is specifically for the 3-group La Marzocco Linea PB X.

What configurations are available?
The Linea PB X 3 Group is available in AV (auto-volumetric) and ABR (auto brew ratio with scales) configurations.

What is the difference between AV and ABR?
AV provides automatic volumetric espresso dosing, while ABR adds integrated precision scales in the drip tray for enhanced extraction consistency using coffee weight.

Which configuration has integrated scales?
The integrated precision scales are exclusive to the ABR configuration.

Does each group have its own coffee boiler?
Yes. The Linea PB X uses independent saturated boilers for each group head. The 3-group model has three 1.3-liter coffee boilers.

What is the steam boiler capacity?
The 3-group Linea PB X features an 11-liter steam boiler.

What are the benefits of independent saturated boilers?
Independent saturated boilers allow the barista to optimize temperature for individual coffees on different group heads while maintaining thermal stability.

Does the Linea PB X have PID temperature control?
Yes. Dual PID control allows electronic adjustment of the coffee and steam boiler temperatures.

What are Pro Touch steam wands?
Pro Touch steam wands provide high-performance steam while remaining cool to the touch during operation.

What are the dimensions of the 3-group Linea PB X?
The machine measures approximately 38 inches wide, 23 inches deep, and 21 inches high.

How much does the 3-group Linea PB X weigh?
The 3-group model weighs approximately 170 lbs (77 kg).

What are the electrical options?
The brochure lists 200V single phase, 220V single or 3 phase, and 380V 3 phase. The 3-group model has a minimum wattage of 5830W and a maximum wattage of 7790W.

Does the Linea PB X have an energy-saving mode?
Yes. Eco Mode can be programmed to place the machine into standby to help improve energy efficiency.

Does the Linea PB X include barista lights?
Yes. Barista lights provide LED illumination around the extraction and cup area.

Is the Linea PB X compatible with the La Marzocco Pro App?
Yes. The electronic board allows connectivity with the La Marzocco Pro App.

What special-order options are available?
The brochure lists a cup warmer, personalized RAL colors, and high legs as special-order options.

WARRANTY

• Manufacturer's warranty applies
